FB4CGG5@VU09P TimeSync

FPGA Card – 100G Quad Port TimeSync FPGA Card QSFP28 port supporting 4x100GE, 16xPCIe Gen3

FPGA Card – Quad QSFP28 port card supporting 4x100GE, 16xPCIe Gen3, AMD® Virtex Ultrascale+ V09P

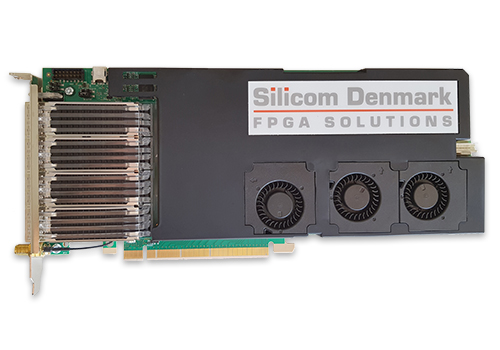

The FB4CGG5@VU09P TimeSync is a high-performance OEM hardware platform intended for 10/40/25/100 Gigabit Ethernet via its quad QSFP28 slots.

The card supports various FPGA models, and in its standard version it is fitted with an AMD® Virtex UltraScale+ VU9P FPGA SG3, to provide ample capacity for the quad QSFP28 interface.

The card is mounted with 2 x 64-bit DDR4 2400MT/s 4GB for a total of 8 GB. In addition to this it features 2 SODIMM sockets for use with DDR4 or QDRII+ modules for low latency applications.

The card features the ZL30793 DPLL for optimal clock control, allowing compliance with IEEE-1588-2019 SyncE and PTP.

Key features

FB4CGG5@VU09P TimeSync

  • AMD® Virtex UltraScale+ VU9P FPGA
  • 4 x QSFP28 ports
  • DPLL ZL30793
  • 2 x 64-bit DDR4@2400MT/s
  • 2 x SODIMM for optional QDRII+ or extra DDR4
  • Configuration flash RAM for boot images
  • PCIe form-factor: 3/4 length, standard height PCIe
  • On-board power and temperature sensors
  • FPGA controlled link and status LEDs
  • Passive cooling (optional)

Specifications

HOST INTERFACE
Physical bus connector: 16-lane PCIe
PCIe bus type: 1-16 lane PCIe Gen1/Gen2/Gen3 via on-board PLX PCIe switch.
Optional 2×8 PCIe lanes via secondary High speed serial connector

NETWORK INTERFACE
IEEE standard: IEEE 802.3 10/40/25/100 GE
Physical interface: 4 x QSFP28 ports (2 port variant available)
Supported QSFP+/QSFP28 modules: including fan-out
modules for 4x10G/4x25GE, Multimode SR4 (850nm),
singlemode LR4 (1310nm), multimode LRM4 (1310
nm), or Direct Attached Copper (Twinax) and others.
Data rate: 16×10, 4×40, 16×25, 4×100 Gbps

CONFIGURATION
16-bit fast parallel programming interface from supporting preprogrammed controller
Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
Upload of FPGA configuration to flash via PCIe
Support for encrypted FPGA bit file (optional)

ON-BOARD MEMORY
2 x 64-bit DDR4@2400MT/s 4 GB
2 x Optional SODIMM
– 64-bit DDR4@2400MT/s 4 GB
8 MB user configurable space in flash for permanent storage

ON-BOARD CLOCK
PCIe clock: 100 MHz
200 MHz clock
50 MHz clock
161.13 MHz clock
DPLL ZL30793

FPGA
AMD® Virtex Ultrascale+ XCVU9P

ENVIRONMENT
Physical dimensions: 3/4 length, standard height PCIe
Power consumption: Operating temperature: 0 – 55°C, 30 – 130°F
Operating humidity: 20 – 80%
Hardware compliance: RoHS, CE
Active cooling (heat sink with fan)
Passive cooling (optional)

TIME SYNCHRONIZATION
PTP: Yes, with PTP4L or zlsptp on x86
Support Sync-E/ 1588 standard
DPLL: ZL30793

ADDITIONAL INTELLECTUAL PROPERTY MODULES
PacketMover framework (optional)
SmartNIC framework (optional)
Ultra low latency 10GE MAC (optional)
TCP-offload engine (optional)
