Silicom FPGA SmartNIC N5013/N5014

Quad port QSFP28, 100 GE, PCIe Gen4 x16, Intel® Stratix® 10 DX FPGA Based, 8GB HBM2

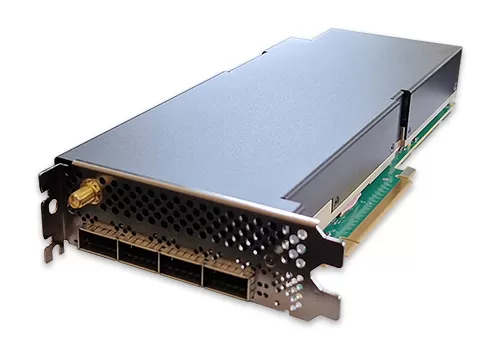

The FB4CGG2@S10D21 FPGA SmartNIC N5013/N5014 is a high-performance programmable PCIe Server adapter based on the Intel® Stratix® 10 DX 2100 FPGA. The Stratix 10 DX 2100 is an extremely powerful FPGA which also features on-chip 8GB HBM2 memory providing an unprecedented 512 GByte/s of total aggregate bandwidth. The N5013 and N5014 are evolutions of N5010 and N5011 respectively.

The N5014 additionally features two Intel E810-CAM1 devices connected to the FPGA and can function as the primary data path to and from the host system. This adds the full set of features of the E810 to the host interaction and its interface options in virtualized systems.

Key Use Cases:

Network Function Virtualization (NFV)
Multi-Access Edge Computing (MEC)
Cyber security
High-Performance Computing
Finance
Mobile Access and Core Network

FB4CG@S10D21 FPGA SmartNIC N5013/N5014:

N5013: 4xQFSP, PCIe Gen4, FPGA, QDR, DDR4, Intel® Max® 10
N5014: 4xQFSP, PCIe Gen4, FPGA, QDR, DDR4, 2xE810-CAM1, PEX88048, Intel® Max® 10

Key Features

FB4CG@S10D21 FPGA SmartNIC N5013/N5014

Intel® Stratix ® 10 DX 2100 FPGA
4 x QSFP28 ports
HBM2: 8GB (2×4 GB, internal)
DDR4/ 32GByte+ECC (x18 devices)
QDR-IV: 144Mbit
Two Intel® e810-CAM1 NIC devices (N5014 only)
Intel® Max® 10 Board Management Controller
On-board power and temperature sensors
FPGA controlled link and status LEDs
Time Synchronization via IEEE 1588 (PTP) and SyncE
Bracket mounted SMA for PPS/10MHz input and optional external Sync bracket with 4 x SMA for in/out of PPS and 10MHz

Specifications

Network Interface
IEEE standard	IEEE 802.3 100GbE, 40GbE, 25GbE, 10GbE
Interfaces	Physical interface: 4 x QSFP28 slots Multimode SR4 (850nm), Single Mode LR4 (1310nm) or Direct Attached Copper (Twinax) Data rate: 4×100, 4×40, 16×25, 16×10 Gbps
Host Interface
PCI bus	PCIe 4.0 x16

General Technical Specifications
FPGA Details	Intel® Stratix® 10 DX 2100 2.073M Logic Element Fabric HBM2: 8GB (2×4 GB, internal)
NIC details (N5014 only)	Intel® Network Controller E810-CAM1 Connected to the PCIe connector via on-board Broadcom 48x PCIe switch NIC provides a hardware compatible interface with Linux drivers Supports Data Plan Development Toolkit (DPDK)
Configuration	Configuration flash can be made to support multiple boot images for automatic fallback to factory default image Upload of FPGA configuration to flash via PCIe – with supported image and tool
On-board Memory	DDR4, 32GB +ECC (x18 devices), 2 banks of 16G + ECC. QDR-IV, 144Mbit HBM2, 8GB in Stratix 10 DX2100
On-board Clock	PCIe clock: 100 MHz 8 output reprogrammable clock generator Supports network synchronization
Additional Board Support	On-board power and temperature sensors (via SMBus/I2C) LEDs for board status and board management
Physical Dimensions	Weight: 1600 g Full height, 111.28 mm ¾ length, 254.0 mm (+bracket) Board thickness: 35.5 mm Dual Slot Passive
Environment	Storage temperature: -40°C–65°C (-40°F–149°F) Operating temperature: 0°C – 45°C (32°F – 113°F) Hardware compliance: RoHS, FCC Class A, CE, UL
Thermal Design	Passive heat sink targeted to dual slot
Power	Max 225W 75W max from the PCIe Slot 150W max from the 12V Aux 2×4 Connector
Port LEDs	4 x Link/ ACT for the 4 x QSFP28, on bracket 1 x multi color status LED, on bracket
Time Synchronization	Support Sync-E/ 1588 standard (option for SW support) Bracket mounted SMA connector, optional Support for external Sync bracket with 4 x SMA for in/out of PPS and 10MHz
Board Management	Intel® Max® 10 FPGA Board Management Controller Voltage level monitoring Thermal shut-down protection Over current protection on 12V input
